Description

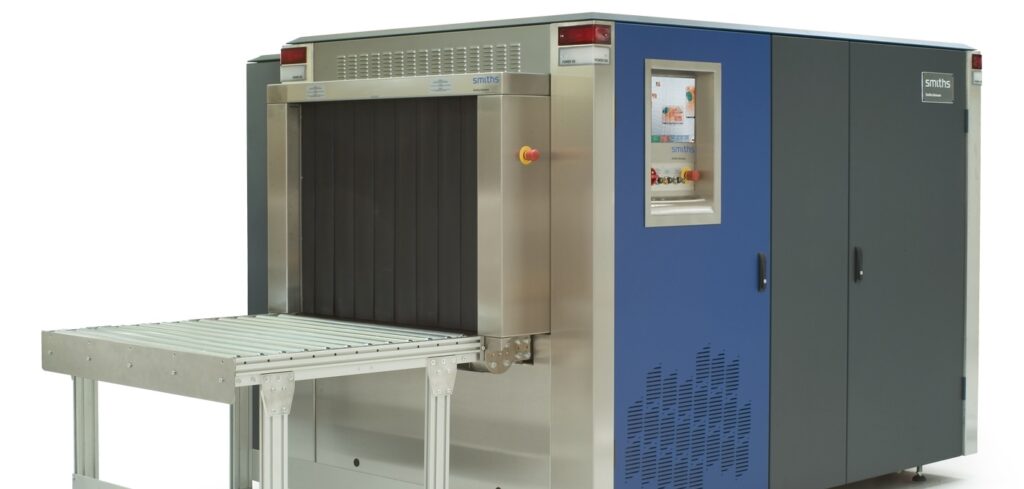

Dual-View X-Ray Screening for Enhanced Evaluation The HI-SCAN 10080 EDX-2is uses a dual-view X-ray system to improve the evaluation process, allowing operators to effectively “look behind” objects while automatically screening baggage for explosives. This advanced imaging capability increases detection accuracy, reduces blind spots, and streamlines security operations.

High-Speed, Multi-Level Screening

The HI-SCAN 10080 EDX-2is is a proven Level-1 checked baggage screening solution. Operating within a multi-level security process, it automatically screens all baggage for explosives. Bags cleared at Level-1 continue directly to their destination, while rejected bags are diverted for further inspection—ensuring both efficiency and security.

Large Tunnel for Oversized Items

With a tunnel opening of 1070 mm x 810 mm, the EDX-2is can screen oversized objects up to 3.8 m in length. This eliminates the need for alternative screening methods and streamlines operations for airports and cargo facilities.

High Detection Capability, Low False Alarms

The system combines exceptional detection performance with a low false-alarm rate, enabling throughput of up to 1,800 bags per hour. Optional iCMORE software enhances detection by automatically identifying lithium batteries.

Featured Highlights

• Dual-view X-ray system for enhanced evaluation
• Approved under EU Regulation 1448/2006 – Standard 2
• Highest detection rate in its class
• Tunnel opening 100 x 80 cm, suitable for oversized luggage
• Screening capacity of up to 1,800 bags/hour
• Certified by STAC and DfT

Efficient, Certified, and Reliable

The HI-SCAN 10080 EDX-2is delivers high-speed, high-accuracy baggage screening with global certifications, making it a trusted solution for airports and security operators worldwide.
